W × H × D600 × 455 × 610 mm
Drawer Cabinets

Base Drawer Cabinets

$269 inc. GST
In stock

Our drawer cabinets are available in a number of configurations and sizes, they are flat packaged with easy to assemble instructions. The height of the built cabinet is 720mm, but a 150mm adjustable foot goes underneath, bringing the total build height to…

Draw TypeOne
Size600mm
Cabinet ColourWhite
Door / Drawer ColourGloss White
SKU D600-1Flat-packed · assembly instructions included
Design it in 3D first — open the planner and drop this straight into your room.
Collect or delivered — pick up from Belmont or have it delivered.
Built to Australian standards with high moisture resistant materials.
Gloss white drawer base cabinets with the top drawer pulled out
Drawer Cabinets

Base Drawer Cabinets

Base Drawer Cabinets D600-1

Base Drawer Cabinets · One · 600mm

Trendstyle · Drawer Cabinets02

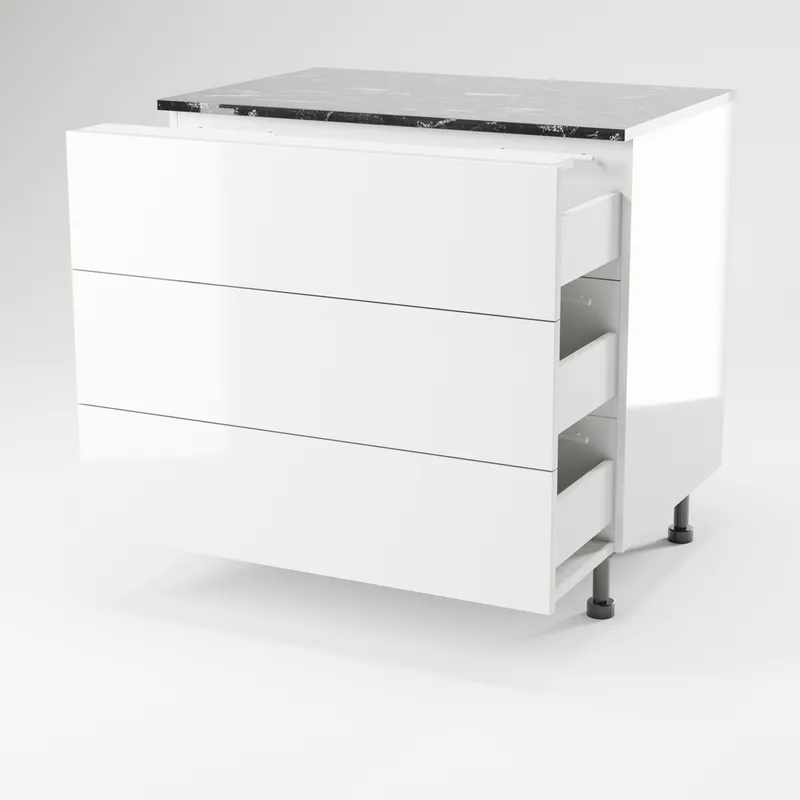

drawer-base-cabinets D900-3E — doors open

Base Drawer Cabinets · Three Equal · 900mm · doors open

Trendstyle · Drawer Cabinets03

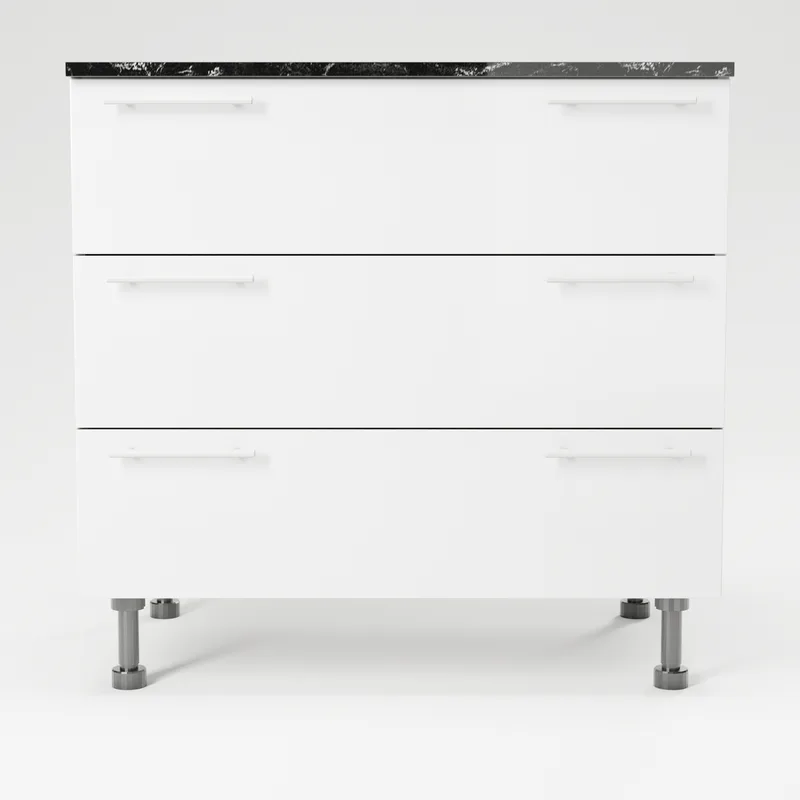

drawer-base-cabinets D900-3E — front view

Base Drawer Cabinets · Three Equal · 900mm · front view

Trendstyle · Drawer Cabinets04
1 / 4Click or flick to turn the page

Overview

Our drawer cabinets are available in a number of configurations and sizes, they are flat packaged with easy to assemble instructions.

The height of the built cabinet is 720mm, but a 150mm adjustable foot goes underneath, bringing the total build height to 870mm.

What's included

  • DTC Heavy duty soft close runners
  • 16mm HMR Particleboard Melamine Carcase
  • 18mm HMR MDF Drawer Fronts
  • Lock In Shelf Supports
  • Fixture & Hardware Pack
  • 150mm Heavy Duty Adjustable Plastic Feet
  • Heavy Duty Stainless Steel Handles

Sizes & shipping

1 Drawer Cabinet - Flatpack Dimensions
  • 600mm: 640mm (L) x 630mm (W) x 120mm (H) Weight 23kgs
2 Drawer Cabinet - Flatpack Dimensions
  • 400mm: 770mm (L) x 620mm (W) x 160mm (H) Weight 32kgs
  • 450mm: 770mm (L) x 620mm (W) x 150mm (H) Weight 34kgs
  • 500mm: 770mm (L) x 620mm (W) x 160mm (H) Weight 35kgs
  • 600mm: 750mm (L) x 680mm (W) x 160mm (H) Weight 43kgs
  • 700mm: 770mm (L) x 770mm (W) x 160mm (H) Weight 47kgs
  • 800mm: 850mm (L) x 800mm (W) x 170mm (H) Weight 54kgs
  • 900mm: 940mm (L) x 770mm (W) x 150mm (H) Weight 61kgs
3 Drawer Cabinet - Flatpack Dimensions
  • 400mm: 770mm (L) x 620mm (W) x 160mm (H) Weight 32kgs
  • 450mm : 770mm (L) x 630mm (W) x 160mm (H) Weight 44kgs
  • 500mm: 770mm (L) x 620mm (W) x 150mm (H) Weight 41kgs
  • 600mm: 760mm (L) x 670mm (W) x 180mm (H) Weight 48kgs
  • 700mm: 770mm (L) x 770mm (W) x 160mm (H) Weight 48kgs
  • 800mm: 860mm (L) x 770mm (W) x 160mm (H) Weight 23kgs
  • 900mm: 950mm (L) x 800mm (W) x 160mm (H) Weight 62kgs
  • 1000mm: 1050mm (L) x 780mm (W) x 80mm (H) Weight 68kgs
  • 1100mm: 1180mm (L) x 800mm (W) x 180mm (H) Weight 73kgs
4 Drawer Cabinet - Flatpack Dimensions
  • 400mm: 770mm (L) x 640mm (W) x 160mm (H) Weight 40kgs
  • 450mm: 770mm (L) x 640mm (W) x 160mm (H) Weight 44kgs
  • 500mm: 760mm (L) x 540mm (W) x 180mm (H) Weight 47kgs
  • 900mm: 940mm (L) x 780mm (W) x 180mm (H) Weight 69kgs
3 Drawer Cabinet Equal - Flatpack Dimensions
  • 450mm: 770mm (L) x 630mm (W) x 16mm (H) Weight 44kgs
  • 600mm: 760mm (L) x 670mm (W) x 180mm (H) Weight 48kgs
  • 800mm: 860mm (L) x 770mm (W) x 160mm (H) Weight 59kgs
  • 900mm: 950mm (L) x 800mm (W) x 160mm (H) Weight 62kgs
Assembly
Every cabinet arrives flat-packed with a hardware pack and step-by-step instructions. The manual for your size is a PDF — or ask Ted to walk you through it.
Help choosing
Not sure which size? Ask Ted, call 0411 613 250 or book a free design consultation.
