SKU: trepnl1 Category:

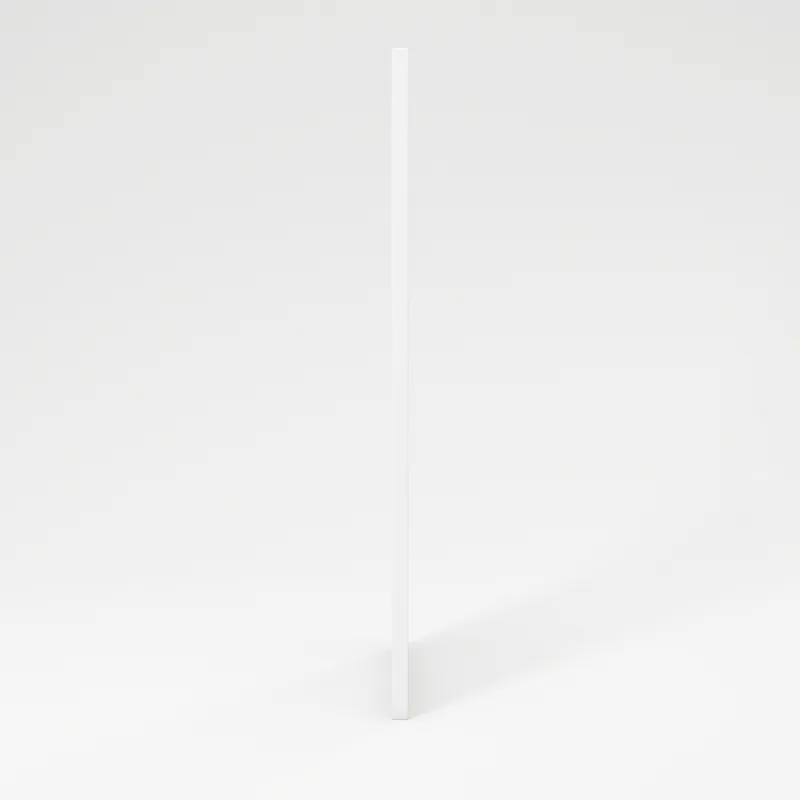

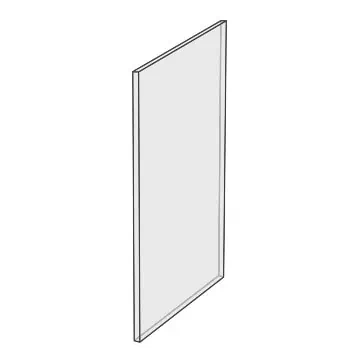

The end panels are designed to go on the final cabinets that can still be seen on this side, and are available for all our cabinets including base cabinets, wall cabinets, and pantries. Going all the way to the floor, this panel also removes the need for kickboards along the same side.

Download instruction manual.


All panels are manufactured using the same materials as the doors.


  • 18mm HMR MDF Thermofoil
  • Matching Door panel Color
  • Available in a range of sizes

Shipping and Dimensions

Below you will find the packaging and flatpack details for each of the different options for this product. These should be used for shipping or pickup references as they are larger than the products themselves.

End Panel - Flatpack Dimensions

  • Base End: 870mm (L) x 600mm (W) x 20mm (H) Weight 7kgs
  • Wall End: 720mm (L) x 320mm (W) x 20mm (H) Weight 3kgs
  • Pantry End: 2200mm (L) x 600mm (W) x 20mm (H) Weight 18kgs
  • Slimline End: 360mm (L) x 320mm (W) x 20mm (H) Weight 1kg

Island Panel - Flatpack Dimensions

  • Island Side 600mm: 870mm (L) x 600mm (W) x 20mm (H) Weight 7kgs
  • Double Island Side: 1160mm (L) x 870mm (W) x 20mm (H) Weight 14kgs
  • Island Back 1200mm: 1200mm (L) x 870mm (W) x 20mm (H) Weight 15kgs
  • Island Back 900mm: 900mm (L) x 870mm (W) x 20mm (H) Weight 11kgs

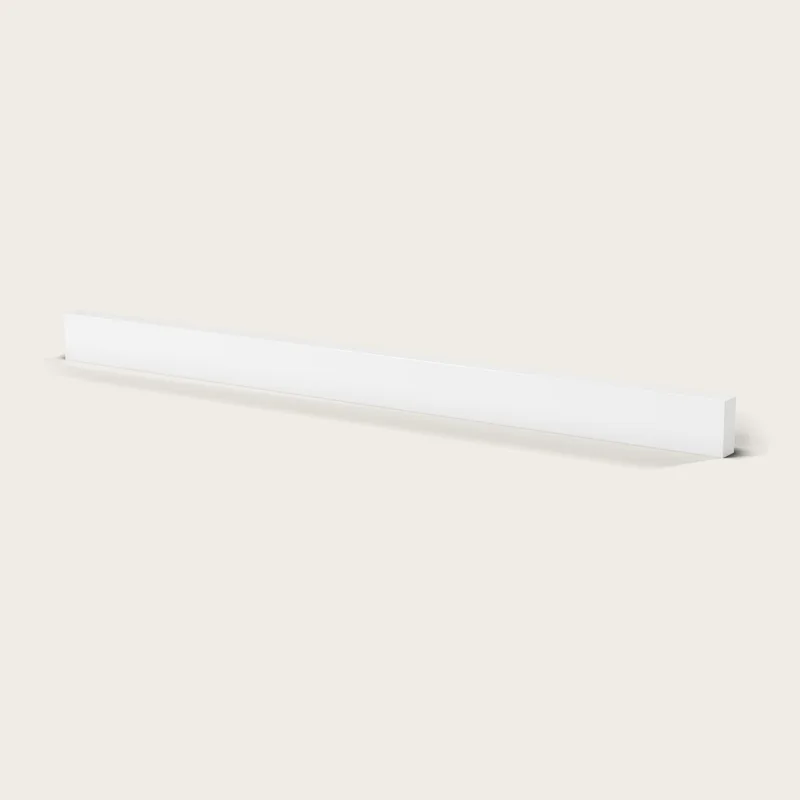

Oven Trim Product Dimensions - Flatpack Dimensions

  • 900mm | 80mm: 900mm (L) 80mm (W) x 20mm (H) Weight 1kg
  • 900mm | 40mm: 900mm (L) x 40mm (W) x 20mm (H) Weight 1kg
  • 900mm | 160mm: 900mm (L) x 160mm (W) x 20mm (H) Weight 3kgs
  • 600mm | 80mm: 600mm (L) x 80mm (W) x 20mm (H) Weight 1kg

Other Product Dimensions - Flatpack Dimensions

  • Base/Wall Filler: 720mm (L) x 100mm (W) x20mm (H) Weight 1kg
  • Pantry Filler: 2055mm (L) x 100mm (W) x 20mm (H) Weight 3kgs
  • Ceiling Scribe: 2400mm (L) x 200mm (W) x20mm (H) Weight 7kgs
  • Wall Corner: 770mm (L) x 680mm (W) x 130mm (H) Weight 30kgs
  • Dishwasher Panel: 870mm (L) x 600mm (W) x 20mm (H) Weight 7kgs
