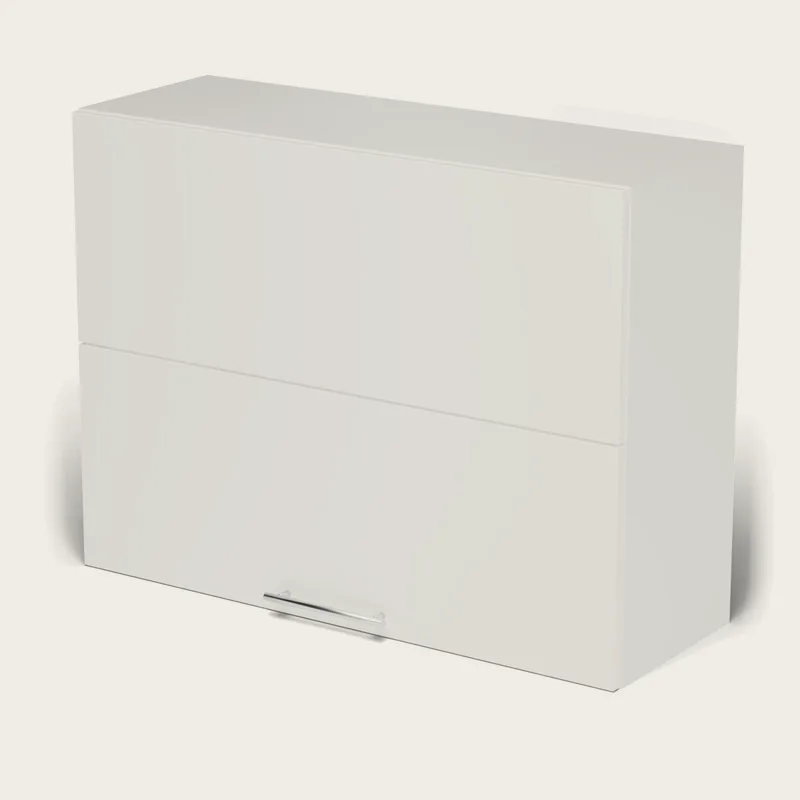

Rangehood Cabinets · 900mm · Vertical Bi-fold · 40mm
Overview

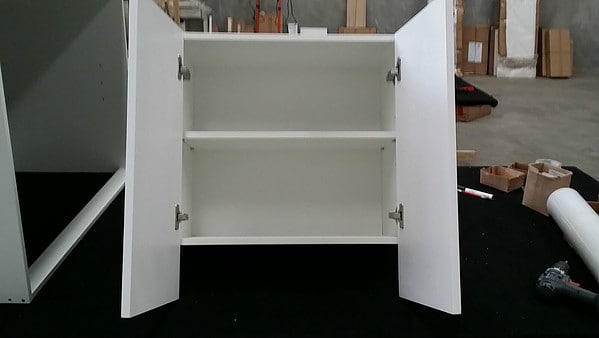

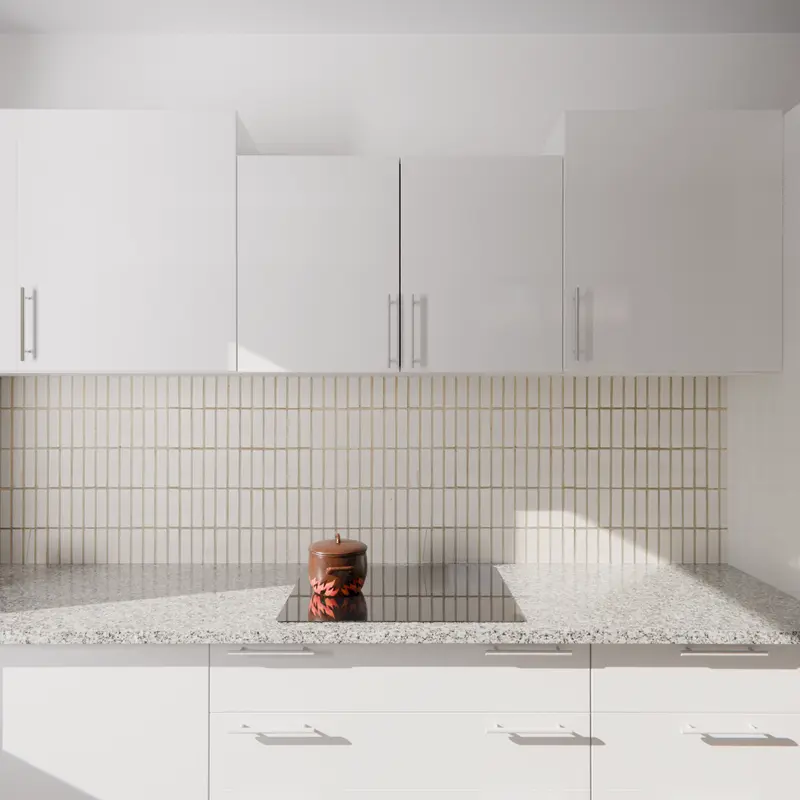

The rangehood cabinets are designed to mount both 900mm & 600mm slide-out rangehoods inside. They are available in 2 different door configurations, either the standard door option or our vertical lift door system.
Two options exist for the built cabinet height, the standard 600mm & 680mm for a snug 40mm slide out rangehood fit (for those who prefer the overhead cabinets in line).
What's included
- DTC Heavy Duty Soft Close Hinges & Hydraulic Lifter
- 16mm HMR Particleboard Melamine Carcase
- 18mm HMR MDF Door
- Fixture & Hardware Pack
- Heavy Duty Stainless Steel Handles
Assembly instructions
Watch Ted build itClosest manual — the 600mm rangehood cabinet manual: the same carcase; the bi-fold door's stay is fitted as its own pack shows.
Closest manual — the 900mm rangehood cabinet manual: the same carcase; the bi-fold door's stay is fitted as its own pack shows.
Manuals for the other sizes (2)
Sizes & shipping
600mm - Flatpack Dimensions
- Standard: 660mm (L) x 650mm (W) x 90mm (H) Weight 18kgs
- Standard 40mm Slideout: 720mm (L) x 600mm (W) x 80mm (H) Weight 20kgs
- Vertical Bi-Fold 40mm Slideout: 720mm (L) x 660mm (W) x 90mm (H) Weight 21kgs
- Vertical Bi-Fold Standard: 650mm (L) x 650mm (W) x 90mm (H) Weight 18kgs
900mm - Flatpack Dimensions
- Standard: 950mm (L) x 660mm (W) x 90mm (H) Weight 26kgs
- Standard 40mm Slideout: 950mm (L) x 750mm (W) x 80mm (H) Weight 26kgs
- Vertical Bi-Fold 40mm Slideout: 950mm (L) x 750mm (W) x 90mm (H) Weight 27kgs
- Vertical Bi-Fold Standard: 950mm (L) x 750mm (W) 90mm (H) Weight 24kgs
Assembly
Every cabinet arrives flat-packed with a hardware pack and step-by-step instructions. The manual for your size is a PDF — or ask Ted to walk you through it.
