Fridge Cabinet
AU$ 0.00
This range of built in Fridge cabinet cavity kits, offers various sizes to suit your new fridge accordingly,
Please note that all oversized Kits require you to cut panels in order to achieve the desired Cavity width.
Our built in Fridge cabinet cavity kits come in Various sizes to accommodate all different makes and models. The Cavity kits come in 2 different setups:
The standard range allows for a 600mm depth and 1840mm Height Cavity, with various width options;
Whilst the Oversized Range allows for a Depth and height up to 864mm x 2040mm.
The correct size fridge cabinet for your fridge can usually be found in the manufacturers specifications, and this information is usually located in the product manual or installation instructions that accompany your appliance at the time of purchase.
Many appliance manufacturers specify minimum requirements for the size of any built in fridge cabinet for warranty purposes, but make sure you follow the required size guide to keep your warranty in tact.
Typically Australian ceiling heights are 2400mm, so these cabinets are perfect at 2200mm allowing breathing space all around the product and room for ventilation which is imperative if you don’t want your appliance to wear prematurely.
Checklist and Important things to consider
What size is my Fridge?
How do the fridge doors open? (do they swing open and need any clearance)
Does the appliance manufacturer specify ventilation requirements?
Will I need a bigger fridge cabinet in the future? (will my family be growing)
Does the appliance require any additional plumbing or electrical work?
Does the built in fridge cabinet look match in with your vision for the kitchen?
Overview
Our built in Fridge cabinet cavity kits come in Various sizes to accommodate all different makes and models. The Cavity kits come in 2 different setups:
The standard range allows for a 600mm depth and 1840mm Height Cavity, with various width options;
Whilst the Oversized Range allows for a Depth and height up to 864mm x 2040mm.
The correct size fridge cabinet for your fridge can usually be found in the manufacturers specifications, this information is usually located in the product manual or installation instructions that accompany your appliance at the time of purchase. Many appliance manufacturers specify minimum requirements for the size of any built in fridge cabinet for warranty purposes, make sure you follow the required size guide to keep your warranty in tact.
Typically Australian ceiling heights are 2400mm, so these cabinets are perfect at 2200mm allowing breathing space all around the product and room for ventilation which is imperative if you don’t want your appliance to wear prematurely.
Checklist and Important things to consider
What size is my Fridge?
How do the fridge doors open? (do they swing open and need any clearance)
Does the appliance manufacturer specify ventilation requirements?
Will I need a bigger fridge cabinet in the future? (will my family be growing)
Does the appliance require any additional plumbing or electrical work?
Does the built in fridge cabinet look match in with your vision for the kitchen?
Inclusions
All our Fridge Cabinets are built to Australian standards, with High moisture resistant Materials.
-

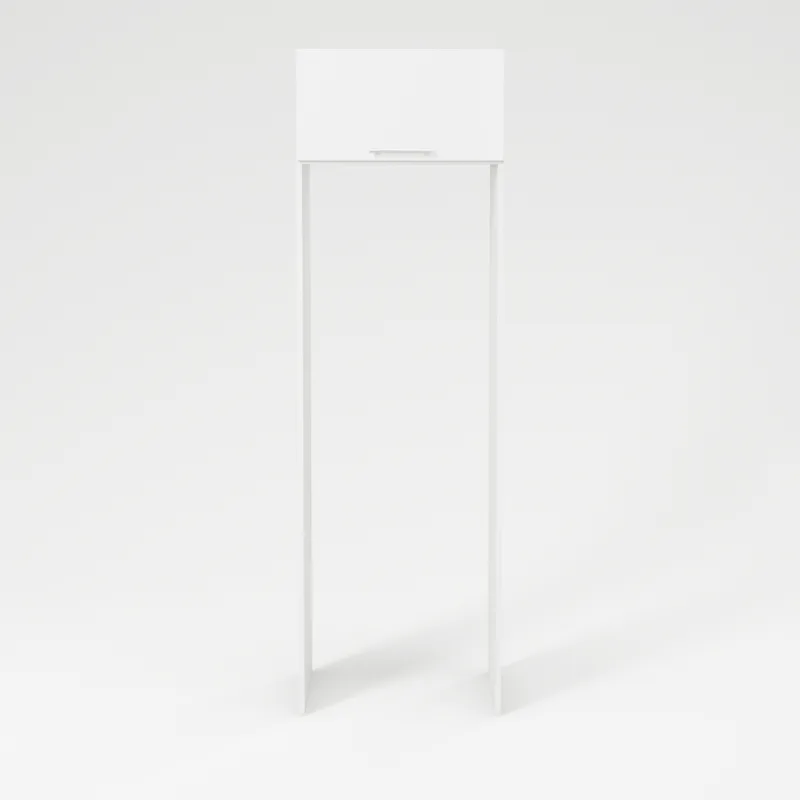

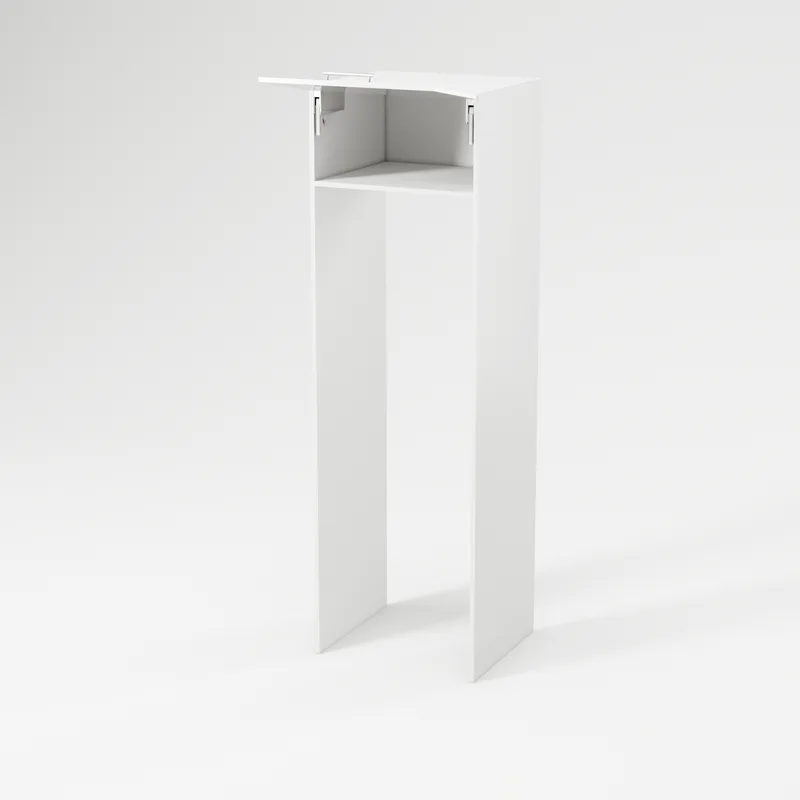

Trendstyle Fridge cavity kits cabinet open
-
Trendstyle Fridge cavity kits closed
-
Trendstyle Fridge cavity kits open
-
fc90040-2
-
fc90040-1
-
fc90040
-
fc80040-2
-
fc80040-1
-
fc80040
-
fc60040-2
-
fc60040-1
-
fc60040
-
fc900-2
-
fc900-1
-
fc900
-
fc800-2
-
fc800-1
-
fc800
-
fc600-2
-
fc600-1
-
fc600
- 16mm HMR Particle Board Melamine Carcase
- 18mm HMR MDF Thermofoil Doors
- Fixture & Hardware Pack
- Heavy Duty Stainless Steel Handles
Shipping and Dimensions
Below you will find the packaging and flatpack details for each of the cartons associated with each product. These should be used for shipping or pickup references as they are larger than the products themselves.
600mm Fridge Cavity Kit Standard - Flatpack Dimensions
- Box 1: 2200mm (L) x 600mm (W) x 20mm (H) Weight 18kgs
- Box 2: 2200mm (L) x 600mm (W) x 20mm (H) Weight 18kgs
- Box 3: 640mm (L) x 440mm (W) x 100mm (H) Weight 14kgs
636mm ~ 799mm Fridge Cavity Kit Standard - Flatpack Dimensions
- Box 1: 2200mm (L) x 600mm (W) x 20mm (H) Weight 18kgs
- Box 2: 2200mm (L) x 600mm (W) x 20mm (H) Weight 18kgs
- Box 3: 640mm (L) x 440mm (W) x 100mm (H) Weight 14kgs
- Box 4: 360mm (L) x 320mm (W) x 200mm (H) Weight 1kg
- Box 5: 360mm (L) x 320mm (W) x 200mm (H) Weight 1kg
800mm Fridge Cavity Kit Standard - Flatpack Dimensions
- Box 1: 2200mm (L) x 600mm (W) x 20mm (H) Weight 18kgs
- Box 2: 2200mm (L) x 600mm (W) x 20mm (H) Weight 18kgs
- Box 3: 840mm (L) x 420mm (W) x 100mm (H) Weight 17kgs
836mm ~ 899mm Fridge Cavity Kit Standard - Flatpack Dimensions
- Box 1: 2200mm (L) x 600mm (W) x 20mm (H) Weight 18kgs
- Box 2: 2200mm (L) x 600mm (W) x 20mm (H) Weight 18kgs
- Box 3: 360mm (L) x 320mm (W) x 200mm (H) Weight 1kg
- Box 4: 360mm (L) x 320mm (W) x 200mm (H) Weight 1kg
- Box 5: 840mm (L) x 420mm (W) x 100mm (H) Weight 17kgs
900mm Fridge Cavity Kit Standard - Flatpack Dimensions
- Box 1: 2200mm (L) x 600mm (W) x 20mm (H) Weight 18kgs
- Box 2: 2200mm (L) x 600mm (W) x 20mm (H) Weight 18kgs
- Box 3: 840mm (L) x 420mm (W) x 100mm (H) Weight 17kgs
936mm ~ 1540mm Fridge Cavity Kit Standard - Flatpack Dimensions
- Box 1: 2200mm (L) x 600mm (W) x 20mm (H) Weight 18kgs
- Box 2: 2200mm (L) x 600mm (W) x 20mm (H) Weight 18kgs
- Box 3: 360mm (L) x 320mm (W) x 200mm (H) Weight 1kgs
- Box 4: 360mm (L) x 320mm (W) x 200mm (H) Weight 1kgs
- Box 5: 940mm (L) x 440mm (W) x 90mm (H) Weight 17kgs
600mm Fridge Cavity Kit Oversized - Flatpack Dimensions
- Box 1: 2400mm (L) x 870mm (W) x 20mm (H) Weight 35kgs
- Box 2: 2400mm (L) x 870mm (W) x 20mm (H) Weight 35kgs
- Box 3: 640mm (L) x 440mm (W) x 100mm (H) Weight 14kgs
636mm ~ 799mm Fridge Cavity Kit Oversized - Flatpack Dimensions
- Box 1: 2400mm (L) x 870mm (W) x 20mm (H) Weight 35kgs
- Box 2: 2400mm (L) x 870mm (W) x 20mm (H) Weight 35kgs
- Box 3: 360mm (L) x 320mm (W) x 200mm (H) Weight 1kg
- Box 4: 360mm (L) x 320mm (W) x 200mm (H) Weight 1kg
- Box 5: 640mm (L) x 440mm (W) x 100mm (H) Weight 14kgs
800mm Fridge Cavity Kit Oversized - Flatpack Dimensions
- Box 1: 2400mm (L) x 870mm (W) x 20mm (H) Weight 35kgs
- Box 2: 2400mm (L) x 870mm (W) x 20mm (H) Weight 35kgs
- Box 3: 840mm (L) x 420mm (W) x 100mm (H) Weight 17kgs
836mm ~ 899mm Fridge Cavity Kit Oversized - Flatpack Dimensions
- Box 1: 2400mm (L) x 870mm (W) x 20mm (H) Weight 35kgs
- Box 2: 2400mm (L) x 870mm (W) x 20mm (H) Weight 35kgs
- Box 3: 360mm (L) x 320mm (W) x 200mm (H) Weight 1kg
- Box 4: 360mm (L) x 320mm (W) x 200mm (H) Weight 1kg
- Box 5: 840mm (L) x 420mm (W) x 100mm (H) Weight 17kg
900mm Fridge Cavity Kit Oversized - Flatpack Dimensions
- Box 1: 2400mm (L) x 870mm (W) x 20mm (H) Weight 35kgs
- Box 2: 2400mm (L) x 870mm (W) x 20mm (H) Weight 35kgs
- Box 3: 940mm (L) x 440mm (W) x 90mm (H) Weight 17kgs
936mm ~ 1540mm Fridge Cavity Kit Oversized - Flatpack Dimensions
- Box 1: 2400mm (L) x 870mm (W) x 20mm (H) Weight 35kgs
- Box 2: 2400mm (L) x 870mm (W) x 20mm (H) Weight 35kgs
- Box 3: 360mm (L) x 320mm (W) x 200mm (H) Weight 1kg
- Box 4: 360mm (L) x 320mm (W) x 200mm (H) Weight 1kg
- Box 5: 940mm (L) x 440mm (W) x 90mm (H) Weight 17kg
